VLX 120 Glass Railing System

VLX 120 Glass Railing System in Hialeah, FL | Sightline Windows & Doors Hialeah

The VLX 120 Glass Railing System is a premium aluminum-framed glass railing built for homeowners and commercial property owners who want uninterrupted sightlines without sacrificing structural integrity. At Sightline Windows & Doors Hialeah, we’re an authorized ViewLux installation partner, which means every system we sell carries full manufacturer backing and is installed to warranty-safe standards. In Hialeah’s climate, where salt air, afternoon storms, and intense sun test every exterior material, the VLX 120’s marine-grade hardware and thermal-break aluminum construction hold up where lesser systems corrode or warp. Whether you’re finishing a second-story balcony in West Hialeah, a pool deck in Palm Springs, or a commercial mezzanine near the airport corridor, this system delivers the clean, modern look that defines contemporary South Florida architecture. Call (786) 574-2745 to schedule your free on-site measurement and written estimate.

Call (786) 574-2745

Product Overview - VLX 120 Glass Railing System

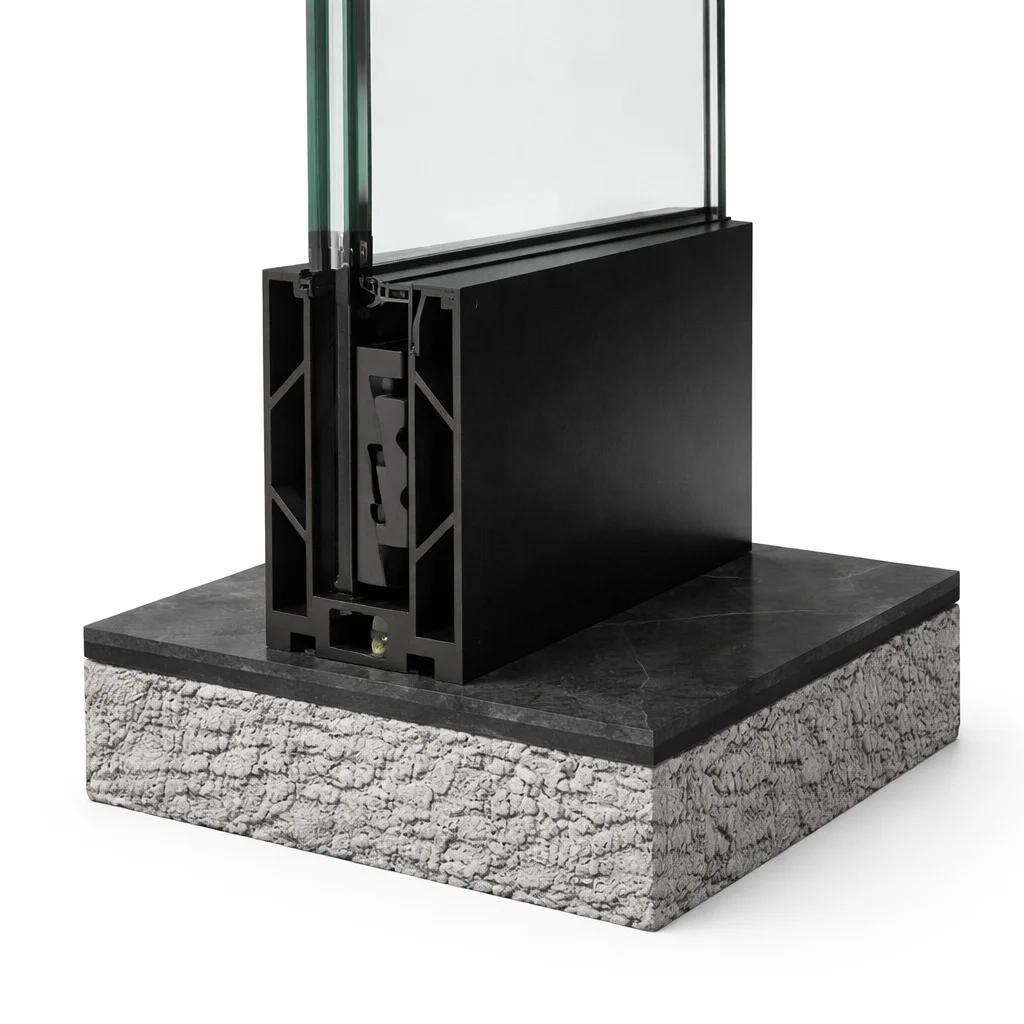

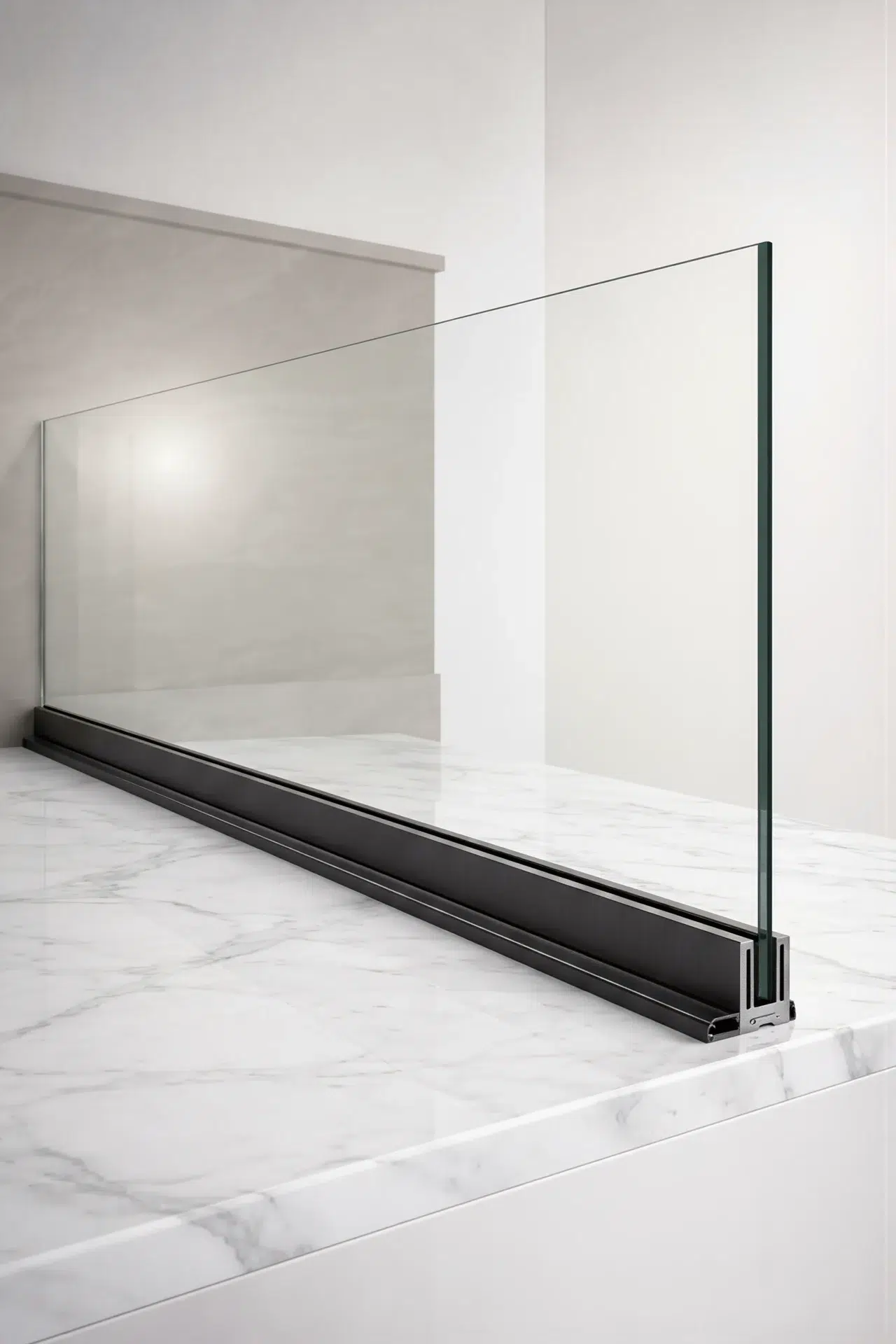

The VLX 120 was engineered around a simple idea: the best view is the one with nothing in the way. ViewLux achieves this through a slim-profile aluminum frame that supports near-frameless glass panels, secured with concealed stainless steel hardware that disappears into the design.

What sets this system apart from standard porch railings or bulky framed alternatives is the balance of minimal visual weight with genuine structural capacity. The aluminum extrusions are not decorative shells; they’re load-bearing members designed to meet or exceed commercial handrail code requirements while presenting a residential-scale profile. The 0.079″ wall thickness provides the rigidity needed for long, unbroken panel runs without the flex or vibration common in lighter-gauge competitors.

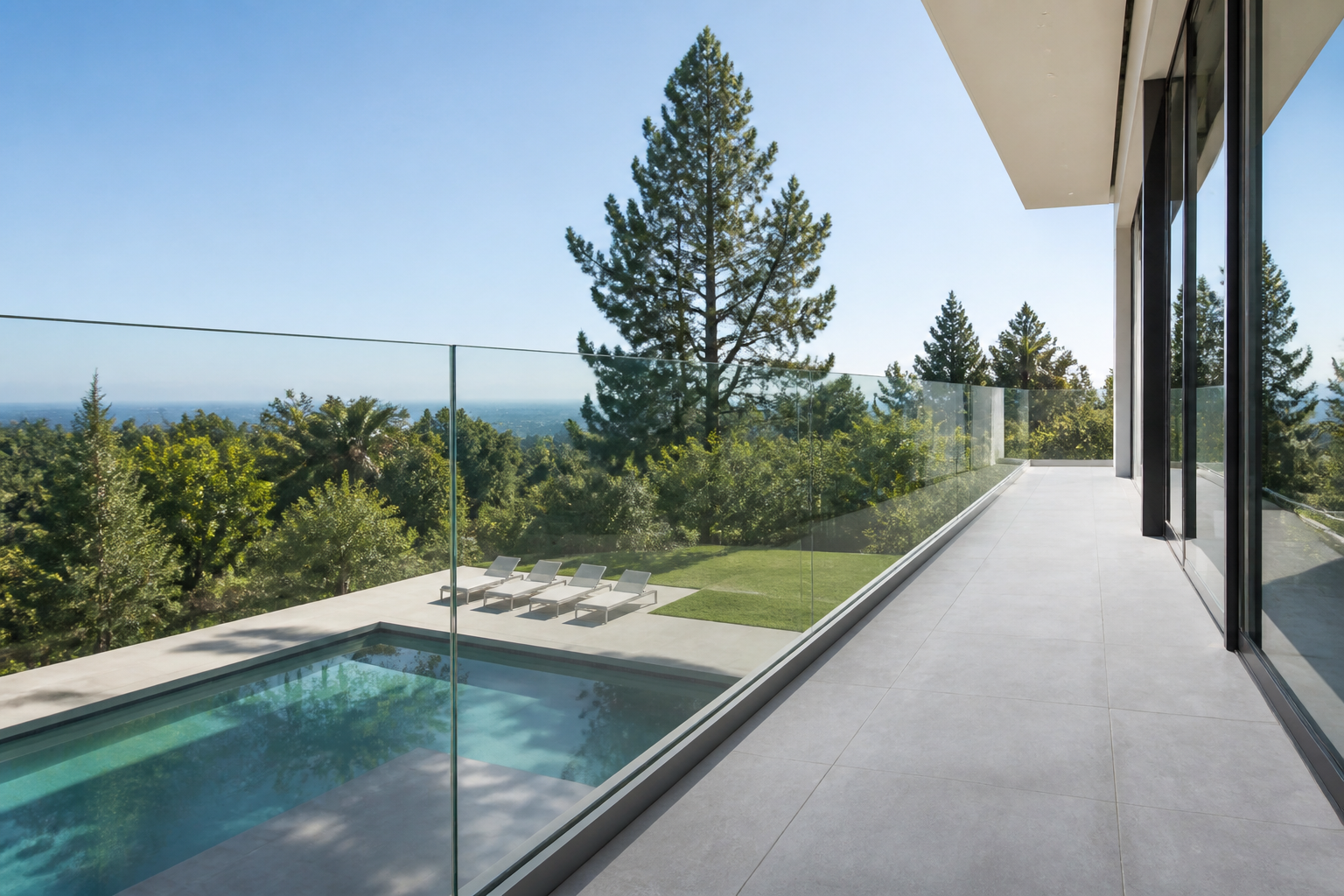

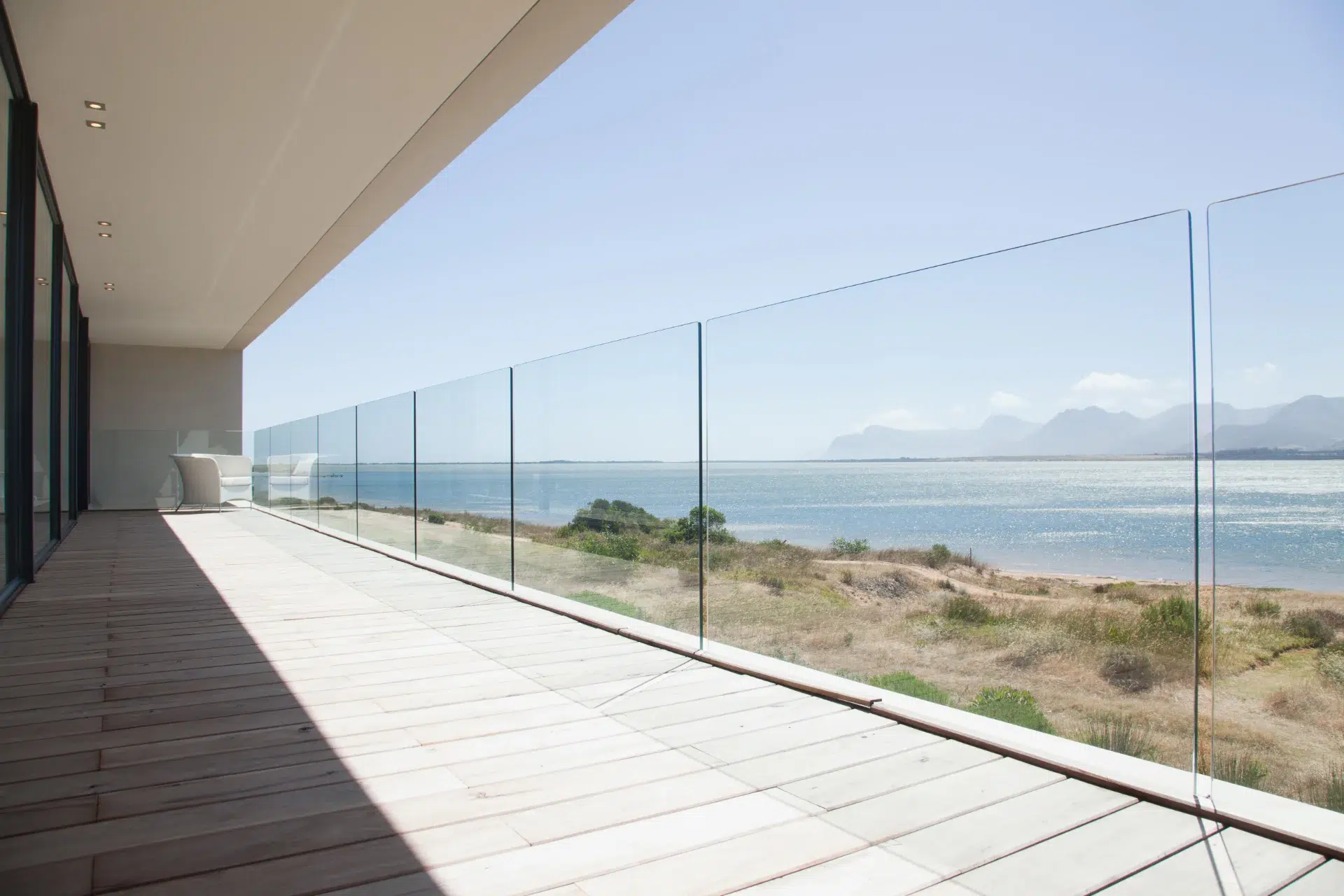

We’ve installed the VLX 120 in Hialeah homes where the goal was preserving a pool view, in downtown-adjacent townhomes where rooftop terraces needed wind-rated protection, and in medical office buildouts where code-compliant barriers had to feel open rather than institutional. Interior applications work equally well: floating staircases, loft overlooks, atrium bridges. The stainless hardware resists the humidity that degrades standard fasteners in unconditioned Hialeah spaces, and the six available finishes coordinate with everything from terrazzo flooring to impact-rated window frames.

The “120” designation refers to the system’s base profile series, optimized for the 2.20″ width that accommodates standard tempered and laminated glass thicknesses without bulky adapter kits. Custom panel sizing means you’re not forcing stock dimensions into a custom build.

Technical Specifications

All glass supplied meets or exceeds Florida Building Code requirements for safety glazing in guard applications. Laminated safety glass carries Miami-Dade HVHZ (High Velocity Hurricane Zone) impact ratings when specified.

Before

After

Performance Features

Thermal Efficiency
The VLX 120 incorporates a polyamide thermal break between interior and exterior aluminum surfaces. This barrier stops conductive heat transfer that would otherwise make exterior handrails uncomfortably hot to touch and bleed conditioned air from interior spaces. NFRC-rated performance data is available for project submittals.

Acoustic Performance
Laminated glass configurations dampen sound transmission across the railing plane. For Hialeah properties near Okeechobee Road, the Palmetto Expressway, or flight paths, this means conversation-level comfort on balconies that would otherwise be drowned in traffic or aircraft noise.

Airtightness & Weather Seal
Every perimeter joint receives AAMA 812 low-expansion foam sealant applied to a clean, primed substrate. This closed-cell material maintains its seal through thermal cycling and does not off-gas or shrink like conventional caulk. The result is a fixed joint that blocks unconditioned air infiltration.

Waterproofing
The base track system includes integrated drainage channels and weep provisions that direct wind-driven rain away from the wall interface. In Hialeah’s summer downpours, this prevents the standing water that breeds mold and damages stucco or waterproofing membranes below.

Wind Resistance
The 0.079″ wall thickness and reinforced corner joints are engineered for the sustained pressure and gust loading specified in Florida’s wind-borne debris regions. When laminated impact glass is specified, the assembly meets the structural requirements for HVHZ installations.

Security & Hardware
316 stainless steel hardware resists salt-air corrosion in Hialeah’s coastal environment. Concealed fasteners eliminate tamper points, and the mechanical glass retention system holds panels securely even if the primary seal is compromised.

Color & Glass Options

The six finish options cover the full range of Hialeah architectural styles without forcing a compromise.

Premium Black and Pure White suit the minimalist contemporary homes going up in newer Hialeah subdivisions, where railings need to read as negative space rather than statement pieces. Brushed Stainless carries an industrial-modern tone that works in converted warehouse spaces and commercial lofts near the Leah Arts District. Anodized Silver is the default for matching existing aluminum window systems; it’s the finish we specify most often for consistency with impact-rated window packages.

Bronze and Champagne warm up traditional Mediterranean and Spanish Colonial exteriors common in established Hialeah neighborhoods. These finishes shift with daylight in ways that complement terracotta roofs and coral stone accents rather than competing with them.

Glass selection follows function. Clear Tempered is the standard for maximum transparency. Low-Iron Tempered removes the green edge tint visible in standard clear glass, essential when white or light-colored finishes would make that tint obvious. Frosted Tempered provides privacy for pool enclosures or balcony separations without the visual heaviness of solid panels. Laminated Safety is required for impact-rated installations and recommended anywhere fall protection is critical; the interlayer holds shattered glass in place.

Installation by Sightline Windows & Doors Hialeah in Hialeah

We don’t hand off ViewLux products to subcontractors who might treat them like commodity railing. Every VLX 120 installation is performed by our own crew, trained specifically on ViewLux assembly sequences and torquing specifications.

The process starts with a pre-install inspection of the substrate. In Hialeah, we frequently find that existing concrete pads or deck framing needs leveling correction before the base track can be set true. We don’t shim and hope; we grind high spots, build up low spots with approved epoxy grout, and establish a dead-level reference line before the first anchor goes in.

Setting the base track is where most DIY and cut-rate installations fail. The VLX 120 requires plumb and square tolerances within 1/8 inch over ten feet. Anything beyond that stresses the glass, binds the hardware, and eventually cracks the panel or loosens the frame. We use laser levels and story poles, not eyeballs.

Once the track is anchored, we apply AAMA 812 low-expansion foam sealant to all perimeter joints. This is not an afterthought; it’s a specified component of the weather barrier system. The foam goes in before the glass, not squeezed in afterward as caulk replacement. We then install glass panels per AAMA 2400/2410 standards, torque stainless hardware to ViewLux specifications, and cap exposed fasteners with matching finish covers.

Final steps matter. We run a water test on every exterior installation, simulating wind-driven rain with a calibrated spray pattern. We check every joint for infiltration. We clean the glass and remove all protective films. We leave the site with warranty documentation signed and registered.

Here’s what Hialeah property owners need to understand: ViewLux voids the manufacturer warranty if installation deviates from their published standards. That means unlicensed work, modified hardware, or skipped sealant steps leave you with expensive glass and no backing. Our authorized-partner status protects your investment.

Hialeah’s specific conditions factor into every spec we write. The salt air near the Miami River canal corridors accelerates corrosion in standard hardware; we specify 316 stainless, not 304. The afternoon thunderstorm pattern means drainage details can’t be approximate. And the combination of strong sun and high humidity demands finishes that won’t chalk or fade within five years. We’ve learned these lessons across hundreds of local installations.

Frequently Asked Questions - VLX 120 Glass Railing System

What is the lead time for the VLX 120 Glass Railing System?
Lead time runs 4-6 weeks from signed approval of shop drawings, with laminated safety glass configurations sometimes extending to 8 weeks depending on current manufacturing queue. We keep standard clear-tempered components in regional inventory for faster turnaround on straightforward Hialeah projects. Call (786) 574-2745 to check current availability for your specific glass and finish combination.

Does the VLX 120 qualify for energy tax credits?
The thermal-break construction contributes to overall building envelope efficiency, but tax credit eligibility depends on the full assembly including glass specification and whether the installation is part of a larger energy improvement project. We provide NFRC performance documentation for your tax preparer or energy rater. For definitive guidance on current federal or Florida incentives, consult a qualified tax professional.

What warranty comes with the Glass Railing System?
ViewLux backs the aluminum frame and finish with a 20-year limited warranty against structural failure and finish degradation, and a 10-year warranty on the insulated glass unit seal. Glass breakage from impact, abuse, or improper installation is excluded. Our labor carries a 5-year workmanship warranty covering installation-specific issues. Full terms are provided with every written quote.

Can I customize the size?
Yes. The VLX 120 is built to custom panel dimensions rather than forcing your opening to fit stock sizes. During our free on-site measurement, we field-verify every run, account for out-of-square conditions, and produce shop drawings for your approval before anything is fabricated. This is standard on every Hialeah project we handle.

How do I maintain aluminum frames in Hialeah’s climate?
Rinse exterior frames quarterly with fresh water to remove salt accumulation, especially if you’re within a few miles of Biscayne Bay or the Miami River canal system. Wash with mild dish soap and a soft brush twice yearly. Avoid abrasive cleaners, steel wool, or pressure washers directed at gasket joints. Inspect weep holes annually for debris blockage. The anodized and powder-coated finishes are designed to be essentially self-sustaining with this minimal care.

Get a Quote - VLX 120 Glass Railing System in Hialeah

Ready to see how the VLX 120 fits your project? We’ll bring finish samples, glass samples, and a measuring tape to your Hialeah property. There’s no charge for the consultation, and you’ll receive a written, line-item quote with no obligation. Call (786) 574-2745 or contact Sightline Windows & Doors Hialeah today to schedule your free on-site measurement and get your project moving.

Written by the team at Sightline Windows & Doors Hialeah, serving Hialeah and surrounding Miami-Dade communities.
